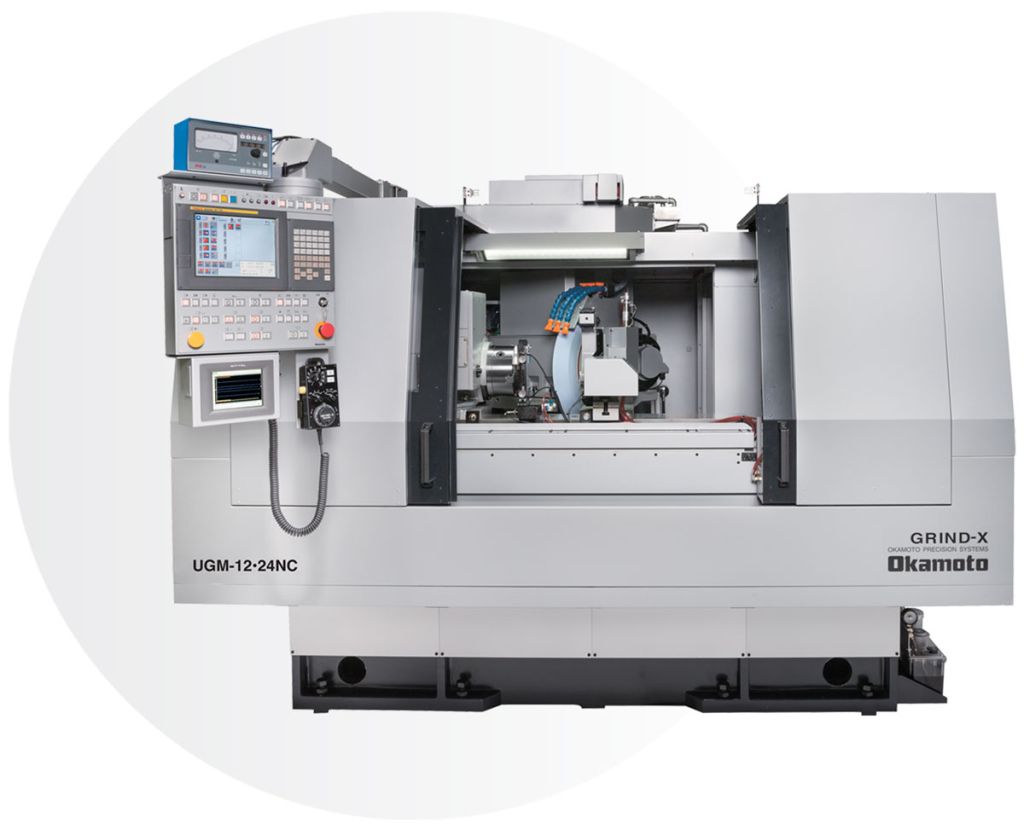

UGM NC Universal Horizontal Grinder

FEATURES:
All-in-One Precision Grinding. One Setup. Faster Results. Maximize productivity and accuracy with a grinding solution designed for versatility and stability. Featuring an integrated grinding wheel turret and advanced automation capabilities, this system performs plain, angle, and internal grinding in a single setup, eliminating time-consuming changeovers and reducing overall machining time. The result: higher throughput, fewer setups, and consistent precision.

Multi-Process Grinding in One Setup

• Plain (cylindrical OD) grinding
• Angle and end-face grinding
• Internal diameter grinding

Automated Precision. With optional in-process measurement and automatic compensation, the machine maintains tight tolerances throughout the grinding cycle. This enables fully automatic, high-precision cycle machining, reducing operator involvement while ensuring repeatable quality.

Rigid, Thermally Stable Construction. A solid single-piece T-Frame casting with no overhang provides exceptional rigidity and vibration resistance. Combined with the integrated T-shaped frame structure, the system maintains stable grinding accuracy even during demanding operations.

Advanced Motion & Control. High-accuracy direct-drive spindle indexing motor ensures precise positioning and repeatable grinding performance.

Temperature-controlled built-in spindle motors reduce thermal expansion and minimize spindle thrust for ultra-precise results.

Proprietary conversational software simplifies complex data entry, enabling faster setup and easier operation.

Superior Surface Accuracy. The V-V table way construction reduces grinding pressure by up to 50% compared to conventional V-Flat systems, dramatically improving straightness accuracy and overall surface finish.

One machine. Multiple grinding operations. Maximum precision.
