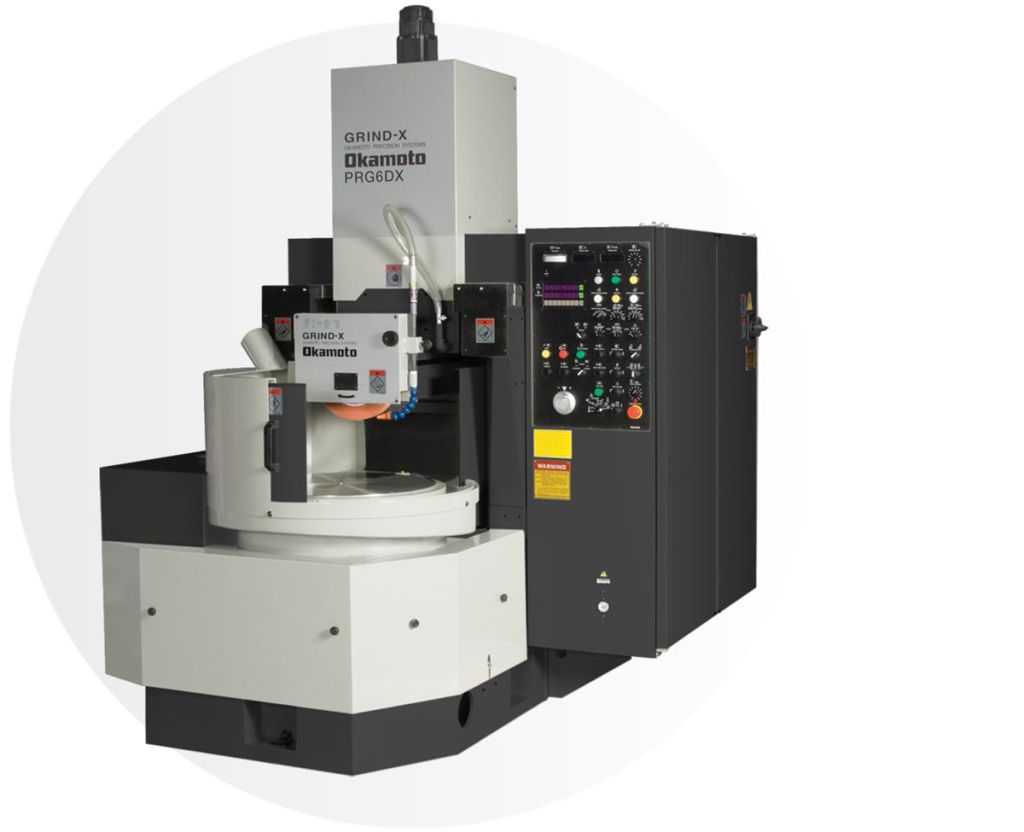

PRG DX Rotary Grinder
FEATURES:
Engineered for High-Production Precision. PRG-DX MDI Control Rotary Grinders are highly productive by design. The wheelhead travels only half the rotary table diameter to achieve full-contact grinding—maximizing efficiency and reducing cycle times. This makes the PRG-DX ideal for both single and multiple workpiece grinding in demanding production environments.
Built on a rigid, heavy Meehanite cast construction, PRG-DX grinders deliver superb accuracy and long-term stability. A powerful 10 HP grinding spindle motor is engineered to withstand continuous production grinding without compromise. With no table overhang, accuracy is maintained at every position. An easy-to-use MDI control simplifies operation, while the ergonomic machine design ensures maximum operator comfort throughout long shifts. A versatile rotary table with ±5° swivel adds flexibility for a wide range of precision applications.
High-productivity design with reduced wheelhead travel
Ideal for single or multiple workpiece grinding
Rigid Meehanite cast construction for superior accuracy
10 HP spindle motor for continuous production duty
No table overhang for optimal precision
User-friendly MDI control
STANDARD ACCESSORIES:
- Grinding Wheel with Adapter
- Magnetic Chuck
- Chuck Control with Automatic Demagnetizer and variable Hold
- Automatic Grinding Cycle
- Installation
- Diamond Tool with Holder
- Necessary Tools
- Leveling Bolts and Base Plates
- Electro-Magnetic Chuck
OPTIONAL ACCESSORIES:
- Variety of Coolant Systems
- Grinding Wheel Balancing Stand with Arbor
- Wheel Balancing Stand with Arbor
- Machine Light
- Metric Conversion Kit
- Frequency Inverter for Spindle Motor
