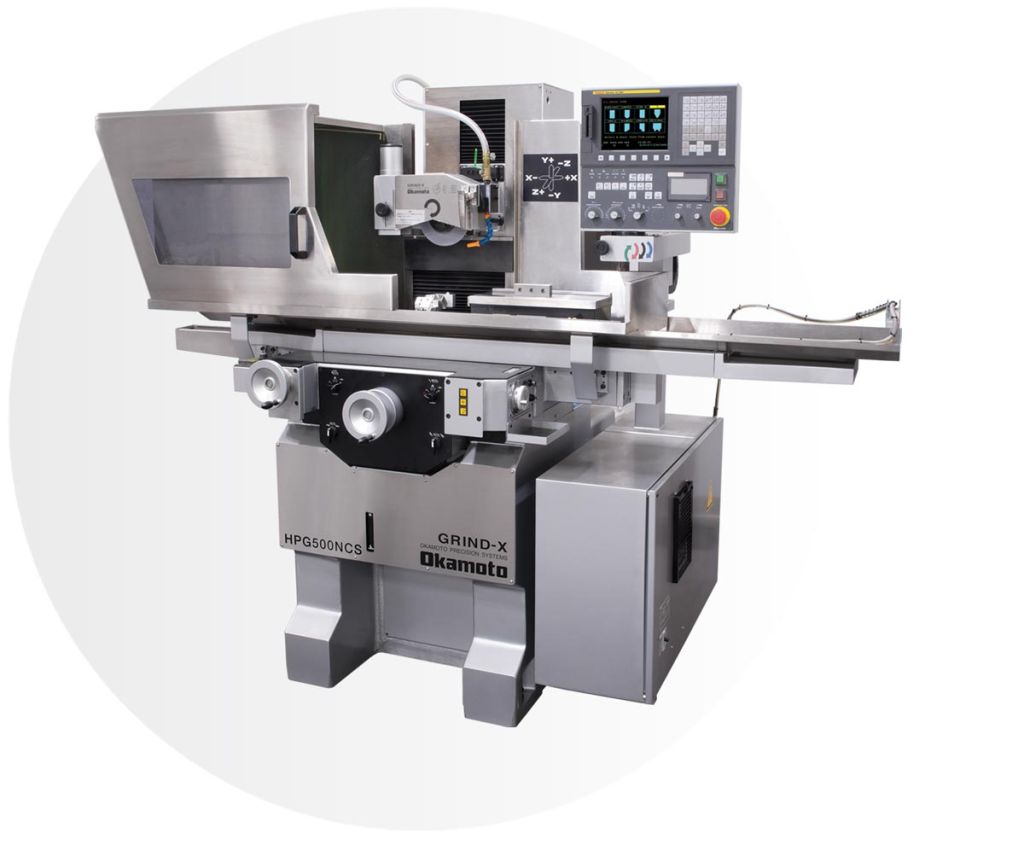

HPG 500NCS High Speed Form Grinder

FEATURES:
Built for Shops That Refuse to Slow Down If you’re grinding small precision parts and every tenth matters, the HPG-500NCS was built for you. This machine combines rock-solid construction with exceptional spindle rigidity to deliver an incredible 0.000004” repeatability. The result? Ultra-precise parts, less wheel breakdown, and faster cycle times that keep production moving. And with its easily accessible work envelope, setup is straightforward and operator-friendly.

Precision You Can Count On—Every Single Part The HPG-500NCS isn’t just fast. It’s stable. With double Vee ways on both the longitudinal and crossfeed axes, you get smooth, true tracking and dependable accuracy. The Y and Z axes are driven by servo motors with glass scale feedback, giving you real-time positioning control and confidence in every move. In practical terms, that means:

• Better surface finishes

• Tighter tolerances

• Less scrap

• More consistent output


Speed That Increases Throughput The high-speed table runs on linear guide ways and delivers up to 250 strokes per minute at a 0.5″ stroke length. That’s serious productivity—especially for short strokes and small precision components.
Faster strokes. Shorter cycles. More parts per shift.

CNC That Works With You The Fanuc 0-iMF CNC control makes programming straightforward with easy-to-use graphical conversational programming. You don’t need to be a coding expert to get excellent results.
Setups are simpler. Programming is faster. Operators get comfortable quickly.

Wheel Dressing Made Easy A standard 3-point dresser is built right into the machine for both flat and form dressing. Whether you’re dressing straight or complex forms, it’s right there—accessible and ready.
That means:

• Less downtime

• Better wheel condition

• More consistent form accuracy


Perfect for Small, High-Precision Work

• Small hardened steel components

• Carbide parts

• Precision tooling

• Small form mold inserts


High Precision. High Speed. Done Right. The HPG-500NCS delivers exactly what modern precision shops need: speed without sacrificing accuracy. When you want to push tolerances tighter and move parts through faster, this is the grinder that gets it done.

HPG-500NCS — high precision, high speed grinding at its best
