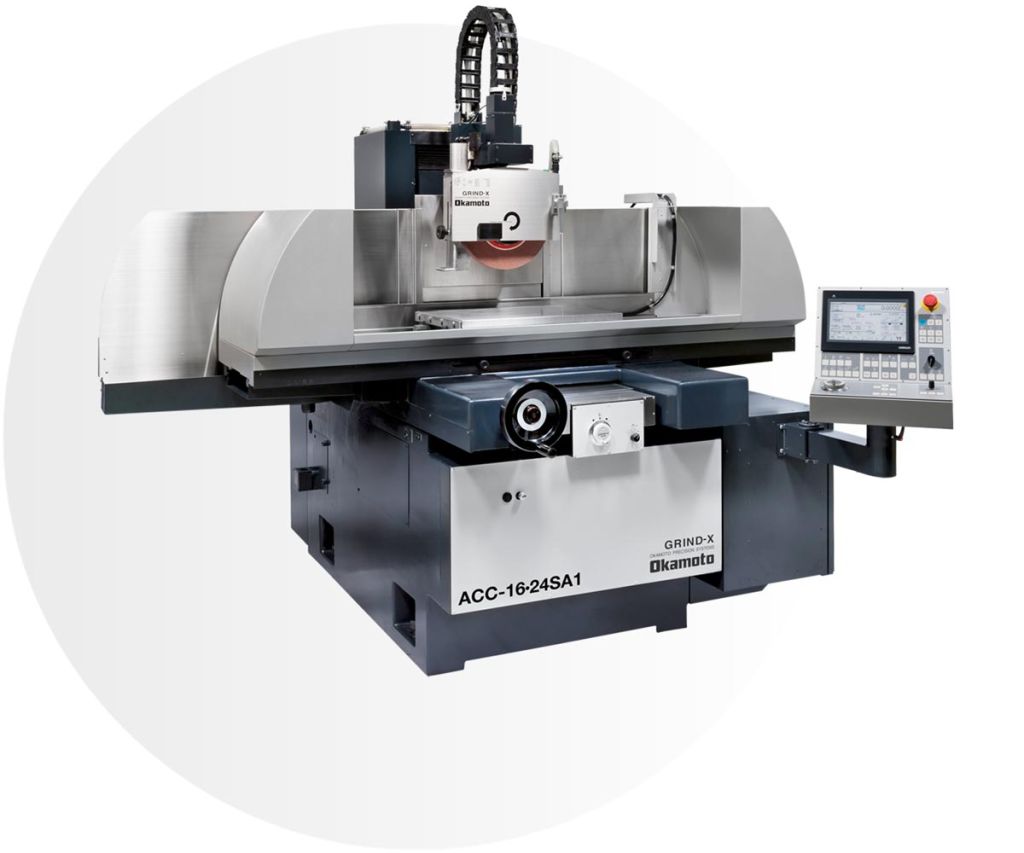

ACC-SA1 Series Saddle Type Surface Grinders

FEATURES:
Advanced MDI-Controlled Precision for High-Demand Production. The ACC-SA1 Series represents the latest generation of MDI-controlled surface grinders, engineered for superior rigidity, repeatability, and fine-resolution positioning required in modern precision manufacturing. Its heavy-duty construction and high-accuracy motion systems provide stable grinding performance across demanding applications. A fully supported table design eliminates overhang error and enhances load-bearing capability, while double-V table ways ensure smooth, repeatable linear motion for long-term geometric stability. These foundational design elements enable the ACC-SA1 to maintain consistent accuracy over extended production cycles.

Programmable Dressing with Automatic Dress Compensation.
Integrated wheel dressing sequences allow for precise control of dressing depth and feed, with automatic compensation applied to maintain wheel diameter and grinding geometry throughout the process.

High-Efficiency Shift/Plunge Cycle. Optimized for aggressive stock removal, this cycle provides rapid infeed capability while maintaining thermal and positional stability.

Automatic Wheelhead Retract. Configurable retract distances improve cycle efficiency and safeguard both wheel and workpiece during non-cutting transitions.

MDI Touchscreen Control Interface. Industrial-grade touchscreen with intuitive MDI (Manual Data Input) control enables rapid setup of grinding parameters, motion commands, dressing cycles, and offsets.

Teach Function for Crossfeed Positioning. Allows operators to capture and store crossfeed positions directly from machine motion, facilitating precise and repeatable multi-pass grinding routines.

AC-Driven Vertical Feed (Z-Axis). High-resolution servo system with a minimum programmable increment of 0.00001″ ensures micro-positioning capability and accurate depth-of-cut control. Includes integrated Manual Pulse Generator (MPG) for tactile fine adjustments.

AC-Driven Crossfeed (Y-Axis). Closed-loop AC servo drive delivers a minimum programmable increment of 0.0001″, enabling precise lateral feed control for step grinding or automatic multi-pass cycles.
